IB TWS Proxy ( 盈透TWS代理 )

Posted on Edited on In Valine:

IB（Interactive Broker) 的投资品种，融资成本，交易费率，出入金成本，资金账户管理综合起来都是比较合理的

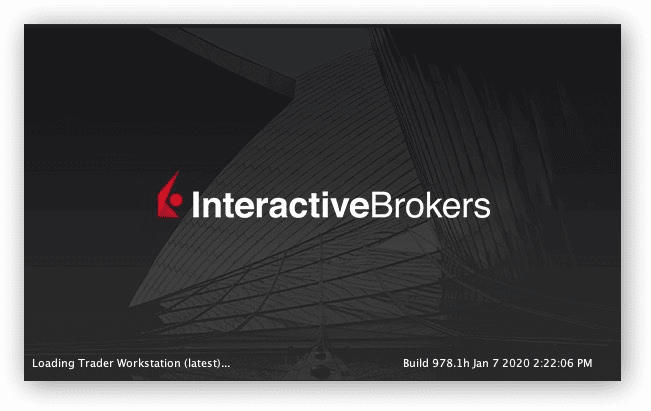

image-20200117143116640

但是在中国区用IB有的时候会面临会网络不稳定的困难，比如启动后的版本升级很卡，这块稍微研究了一下感觉可以适当写个 半文 来帮助小伙伴，之所以说是半文是因为有另一半没讲的是必须 你懂的

Preparation

  • 自备通用加速代理
  • Localhost 监听 一个自定义的 https 端口，此文是 port: 1087

如果你看到这里已经感觉已经办不来了，那就可以直接关闭此文去玩游戏了

IB TWS Proxy

Principle

因为我用Mac，所以我优先介绍 Mac 上的 TWS 的成功实践
在 Mac 上 IB TWS 是用 Java 写的 Application, 打包在 JavaApplicationStub 里面

Intruduction to Java Application Stub

The Java Launching stub file is located inside of your application bundle in the subdirectory “Contents/MacOS/“. The default name for this file is “JavaApplicationStub”. It is used by the Mac OS X system read the applications plist and then launch the Java VM with the appropriate properties such as the classpath and main class name.

http://informagen.com/JarBundler/StubFile.html

大概理解就行不用深究，所以思路就是让这个JavaApplicationStub 和 java 这两个程序通过我们前面准备好的代理把请求通过 1087 端口转发出去

TWS Proxy Configuration

使用 Proxifier 进行代理
https://www.proxifier.com/download/

Step 1

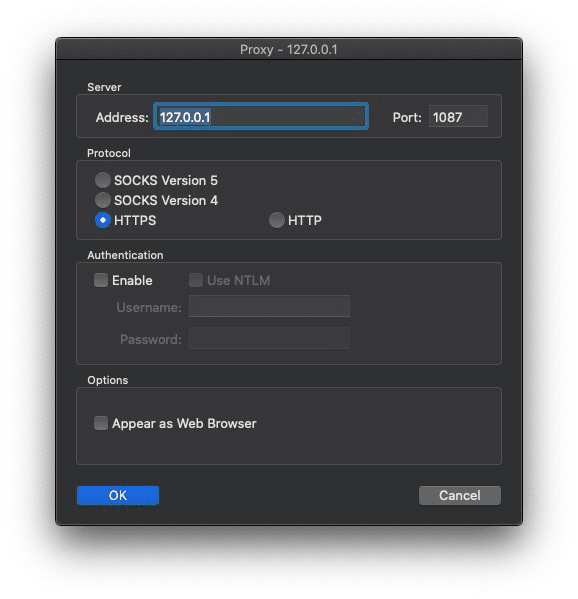

在 Proxifier 里面增加一个 Proxy：127.0.0.1:1087, 1087对应你本地的代理设置，可自行更改

image-20200117134447179

Step 2

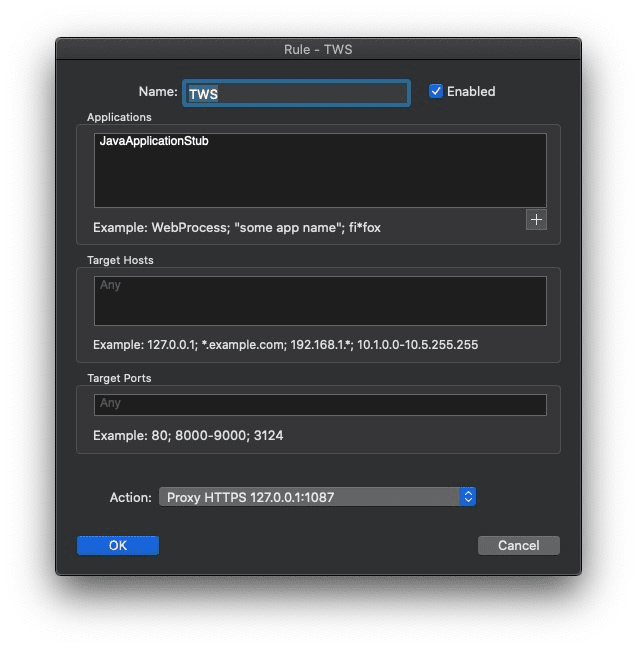

  • 增加条 Rule for TWS，指定 Applications -> JavaApplicationStub 的请求转发到 Proxy HTTPS 127.0.0.1:1087

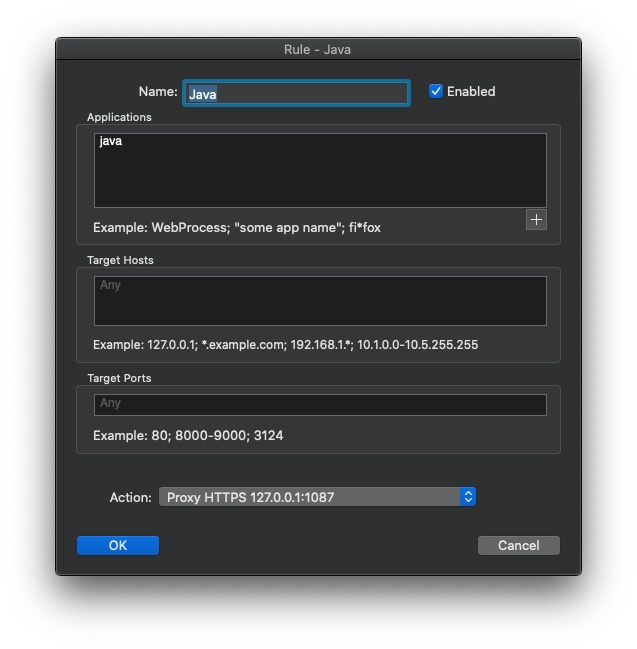

  • 增加条 Rule for TWS，指定 Applications -> java 的请求转发到 Proxy HTTPS 127.0.0.1:1087

image-20200117134959350
image-20200117183231020

接下来就可以通过代理使用 TWS 了，如果不用代理正常访问是正常的就不如直接访问，因为数据传输快点

以上方式Target Host里面是Any，这是针对所有的 Java Application 的，不过系统里面Java程序很少无所谓了，如果想再精确些可以继续往下看

Note

TWS 登陆的 Log 可以看下面的 Proxifier TWS Log，你可以看到 TWS 通过哪个端口去访问了哪个地址，如果你不想通过 Proxifier 去代理或者用其他代理，那就手动把出现的所有访问网站全给代理了就行了

1
2
3
4
5
6
7
8
9
10
11
12
amazonaws.com
interactivebrokers.com
ibllc.com
ibkr.info

# Asia
interactivebrokers.com.hk
ibkr.com.cn

interactivebrokers.co.uk
interactivebrokers.ca
interactivebrokers.co.in

而对于非 Mac 系统，例如 Windows，可以先用 Proxifier 全局代理后看看具体是哪个 TWS instance 去访问网络就把 Application 替换成那个就好了

另外一点需要说说的就是，不要代理上瘾，如果升级完最新版本没啥访问障碍就不要用代理了^_^

学习型的投资者可以加入我的讨论组进行交流讨论

Finance Group in Telegram : My Financial Telegram Group
Finance Group in Discord : My Financial Discord Group
微信讨论群可以关注微信公众号: iLeonVision 发信息跟我要进群二维码

Proxifier TWS Log

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55

[01.17 12:31:48]
[01.17 12:31:48] 		Welcome to Proxifier v2.26
[01.17 12:31:48]
[01.17 12:31:48] Profile "Trading Profile" loaded.
[01.17 12:33:38] JavaApplicationStub - download2.interactivebrokers.com:443 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:33:53] JavaApplicationStub - download2.interactivebrokers.com:443 close, 677 bytes sent, 118775 bytes (115 KB) received, lifetime 00:15
[01.17 12:33:56] JavaApplicationStub - download2.interactivebrokers.com:443 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:34:02] JavaApplicationStub - hdc1.ibllc.com:4000 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:34:07] JavaApplicationStub - hdc1.ibllc.com:4000 close, 19 bytes sent, 1091 bytes (1.06 KB) received, lifetime 00:05
[01.17 12:34:11] JavaApplicationStub - download2.interactivebrokers.com:443 close, 895 bytes sent, 819 bytes received, lifetime 00:15
[01.17 12:36:52] JavaApplicationStub - hdc1.ibllc.com:4001 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:37:21] JavaApplicationStub - download2.interactivebrokers.com:443 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:37:27] JavaApplicationStub - download2.interactivebrokers.com:443 close, 634 bytes sent, 18273 bytes (17.8 KB) received, lifetime 00:06
[01.17 12:37:27] JavaApplicationStub - www.interactivebrokers.com.hk:443 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:37:37] JavaApplicationStub - s3.amazonaws.com:443 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:37:41] JavaApplicationStub - www.interactivebrokers.com.hk:443 close, 621 bytes sent, 4618 bytes (4.50 KB) received, lifetime 00:14
[01.17 12:37:45] JavaApplicationStub - download2.interactivebrokers.com:443 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:37:49] JavaApplicationStub - download2.interactivebrokers.com:443 close, 634 bytes sent, 20239 bytes (19.7 KB) received, lifetime 00:04
[01.17 12:37:49] JavaApplicationStub - www.interactivebrokers.com.hk:443 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:37:54] JavaApplicationStub - s3.amazonaws.com:443 close, 736 bytes sent, 220267 bytes (215 KB) received, lifetime 00:17
[01.17 12:38:01] JavaApplicationStub - www.interactivebrokers.com.hk:443 close, 547 bytes sent, 1149 bytes (1.12 KB) received, lifetime 00:12
[01.17 12:38:14] JavaApplicationStub - hdc1.ibllc.com:4000 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:38:16] JavaApplicationStub - hdc1.ibllc.com:4000 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:38:24] JavaApplicationStub - hdc1.ibllc.com:4000 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:38:45] JavaApplicationStub - ndcdyn.interactivebrokers.com:443 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:38:54] JavaApplicationStub - risk.interactivebrokers.com:443 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:38:57] JavaApplicationStub - ndc1.ibllc.com:4000 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:38:57] JavaApplicationStub - ndc1.ibllc.com:4000 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:38:57] JavaApplicationStub - hdc1.ibllc.com:4000 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:38:58] JavaApplicationStub - zdc1.ibllc.com:4000 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:38:58] JavaApplicationStub - ndc1.ibllc.com:4000 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:38:58] JavaApplicationStub - zdc1.ibllc.com:4000 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:38:58] JavaApplicationStub - ndc1.ibllc.com:4000 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:38:58] JavaApplicationStub - ndc1.ibllc.com:4000 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:38:59] JavaApplicationStub - ndcdyn.interactivebrokers.com:443 close, 1302 bytes (1.27 KB) sent, 5634 bytes (5.50 KB) received, lifetime 00:14
[01.17 12:39:03] JavaApplicationStub - risk.interactivebrokers.com:443 close, 798 bytes sent, 3743 bytes (3.65 KB) received, lifetime 00:09
[01.17 12:39:04] JavaApplicationStub - ndc1.ibllc.com:4000 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:41:23] JavaApplicationStub - ndc1.ibllc.com:4000 close, 2353 bytes (2.29 KB) sent, 6855 bytes (6.69 KB) received, lifetime 02:25
[01.17 12:41:23] JavaApplicationStub - hdc1.ibllc.com:4000 close, 2368 bytes (2.31 KB) sent, 6942 bytes (6.77 KB) received, lifetime 02:26
[01.17 12:41:23] JavaApplicationStub - ndc1.ibllc.com:4000 close, 4135 bytes (4.03 KB) sent, 8460 bytes (8.26 KB) received, lifetime 02:26
[01.17 12:41:23] JavaApplicationStub - zdc1.ibllc.com:4000 close, 2368 bytes (2.31 KB) sent, 6971 bytes (6.80 KB) received, lifetime 02:25
[01.17 12:41:24] JavaApplicationStub - ndc1.ibllc.com:4000 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:41:25] JavaApplicationStub - ndc1.ibllc.com:4000 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:41:27] JavaApplicationStub - feeds.finance.yahoo.com:80 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:41:36] JavaApplicationStub - feeds.finance.yahoo.com:80 close, 262 bytes sent, 294 bytes received, lifetime 00:09
[01.17 12:41:47] JavaApplicationStub - ndc1.ibllc.com:4000 close, 1209 bytes (1.18 KB) sent, 6325 bytes (6.17 KB) received, lifetime 00:23
[01.17 12:41:47] JavaApplicationStub - hdc1.ibllc.com:4000 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:42:27] JavaApplicationStub - ndc1.ibllc.com:4000 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:42:27] JavaApplicationStub - ndc1.ibllc.com:4000 close, 0 bytes sent, 0 bytes received, lifetime <1 sec
[01.17 12:42:27] JavaApplicationStub - ndc1.ibllc.com:4000 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:42:32] JavaApplicationStub - hdc1.ibllc.com:4000 close, 2242 bytes (2.18 KB) sent, 11198 bytes (10.9 KB) received, lifetime 00:45
[01.17 12:45:39] JavaApplicationStub - ndc1.ibllc.com:4000 close, 4794 bytes (4.68 KB) sent, 13291 bytes (12.9 KB) received, lifetime 03:12
[01.17 12:49:05] JavaApplicationStub - ndc1.ibllc.com:4000 open through proxy 127.0.0.1:1087 HTTPS
[01.17 12:49:12] JavaApplicationStub - ndc1.ibllc.com:4000 close, 4658 bytes (4.54 KB) sent, 14341 bytes (14.0 KB) received, lifetime 00:07
